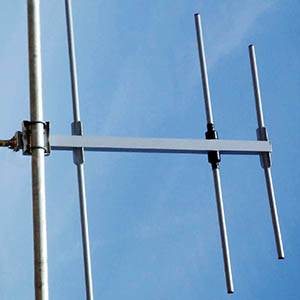

3 Element Yagi Antenna

3 Element Yagi Antenna

The 3 Element Yagi Antenna utilizes hot‐dip galvanized steel for manufacture to protect them from the weather. It also provides a directional radiation pattern for FM radio broadcasters suitable for medium and high power FM stacked arrays.

Mechanical Features & Materials:

The antenna body and bracket manufacturing use hot‐dip galvanized steel, stainless steel hardware, Teflon isolators, and silicone O‐Rings. The antenna includes a pipe mounting for vertical or horizontal polarization. The configuration also provides directional, semi-directional and Omnidirectional diagrams.

Features of 3 Element FM Yagi Antenna

Band:                                 87.5-108 MHz
Bandwidth:                        FM Band
Average Gain:                    4.5 dBd (6.65 dBi)
VSWR:                               < 1.3:1
Polarization:                      Vertical (also horizontal upon request)
Max Power:                       5kW (Single Carrier)
Connector:                        7/8” EIA
Dimensions:                      54” x 68” x 3”/133 x 173 x 8 cm
Net weight:                       26.5 lbs/12 kg

Finally, for more information, please call the Jampro sales team. Alternatively, please visit our Contact us page outside regular working hours or public holidays. We will respond to you as soon as possible.

Download

J3YF 3 Element FM Yagi Antenna
