3 Output Coaxial Power Divider

Coaxial Power Divider

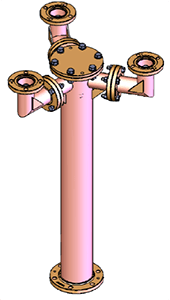

The Jampro Antennas 3 Output Coaxial Power Divider (RCTQ-3234-UHF) is a 3 1/8” EIA to 1 5/8” EIA . Manufacturing uses the highest quality components with corrosion resistant materials. Specifically designed for many years of reliable and trouble-free operation. The product design allows pressurization with dry air in order to prevent condensation degrading the electrical performance.

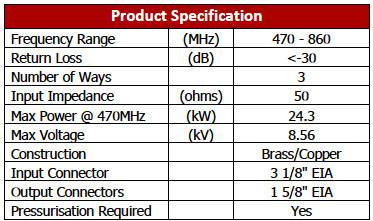

3 Output Coaxial Power Divider Specification

Jampro can also supply the dehydrator, pressurization, coaxial feeders and connectors plus all the accessories needed for a successful installation. Please just ask the Jampro Sales Team for a full transmitter to antenna proposal. Please also review the Jampro Combiners and Filters that you might need to merge two or more frequencies on to a single broadband antenna array.

Finally, for more information please call the Jampro team.  Alternatively, please leave a message via the Contact us page and we will respond to you as soon as possible.

Download

3 Output Coaxial Power Divider (6 downloads)
