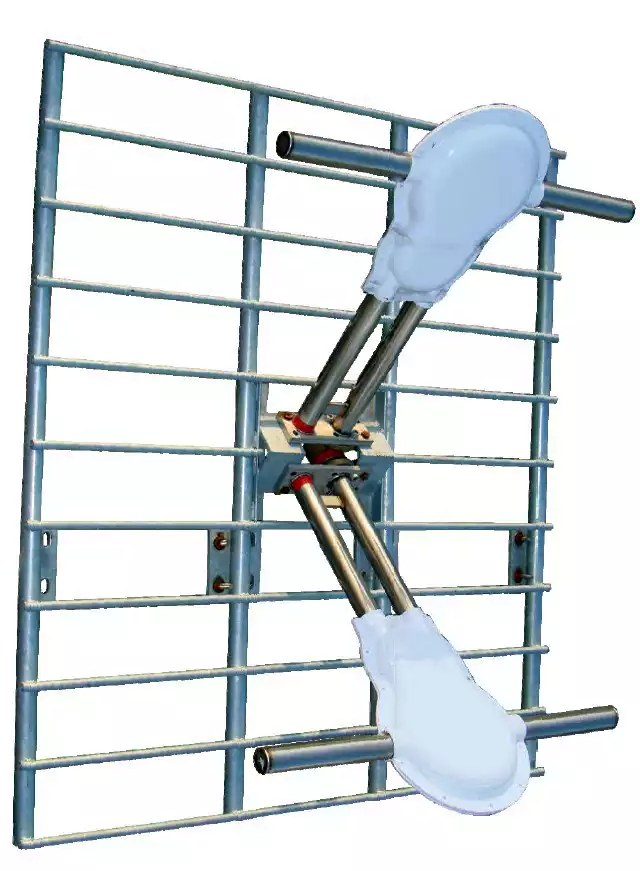

Dual Dipole Band III Flat Panel Antenna

Introducing the Jampro Horizontal Polarized Dual Dipole Band III Flat Panel Antenna (JHD-HV2). Designed for high band VHF (CH 7-13) Band III (174-230 MHz). Besides, its rugged galvanized steel construction ensures many years of dependable performance, even in the harshest environments. Also, optional radomes will protect against ice build-up.

Horizontal Polarized Dual Dipole Band III Flat Panel Antenna.

Moreover, the JHD antennas have excellent bandwidth that has been proven many times. Besides, they have a typical VSWR of <1.05:1 on the carrier and <1.1:1 across the channel. Many standards and custom directional patterns are also available to fit any of your coverage requirements.

Features:

Horizontal Polarized Dual Dipole Band III Flat Panel Antenna

  • Also designed for high band VHF (Ch 7-13) Band III (174-230 MHz).
  • Typical VSWR 1.05:1 or better.
  • Omni-directional or custom directional patterns.
  • Rugged Hot Dipped Galvanized Steel Construction.
  • Stainless steel dipole.
  • Pressurized Feed System.
  • Radomes are available with custom mounting brackets available for simple installation.
  • Single Panel Gain 8.0 dB.

Finally, for more information and pricing, please call the Jampro team. Alternatively, leave a message via the Contact Us page. We will get back to you as soon as possible.

Download

JHD-HR2-Literature.pdf (270 downloads)
