FM Broadband Log Periodic Antenna

FM Broadband Log Periodic Antenna

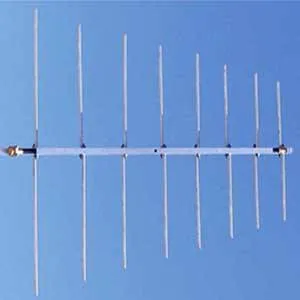

The Jampro JAVA FM broadband log-periodic antenna system is one of the finest available in the broadcasting industry. Ideal for High Gain Directional applications. Moreover, it supports a broadband input with a low VSWR across the entire FM band. (87.5 – 108 MHz).

Furthermore, the antenna system consists of log periodic antenna assemblies, power dividers, feed cables, mounting brackets/hardware. These provide secure mounting to the tower. Also, custom directional azimuth pattern and FCC Certification is available on the Jampro full-scale test range. This will confirm both the FCC and the customer’s requirements.

Features of FM Broadband Log Periodic Antenna

  • FM Band: 87.5 – 108 MHz.
  • Element Gain: 6.5 dBd.
  • Input power: 5 kW.
  • VSWR: <1.3:1.
  • FM Band Polarization: Vertical, Horizontal, or Slant Input Connector: 7/8” EIA.
  • Also, Aluminum or Hot dipped Galvanized-optional Custom directional patterns.

Finally, for more information, please call the Jampro team. Alternatively, please visit our Contact us page outside regular working hours or a national holiday and leave a message. We will respond to you as soon as possible.
