Horizontal Dual Dipole Flat Panel Antenna

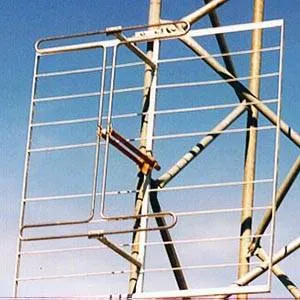

The Jampro Horizontal Dual Dipole Flat Panel Antenna. The JHD-HR2 designed is for high band VHF TV channels.

Horizontal Dual Dipole Flat Panel Antenna

Also, the Galvanized Steel panel construction & stainless steel dipole ensures many years of dependable performance. Moreover, the JHD antenna has been proven to have excellent bandwidth, with typical VSWR of <1.05:1 on the carrier, and <1.1:1 across the channel.

Also, many standards and custom directional patterns are available to fit any of your coverage requirements.

Horizontal Dual Dipole Flat Panel Antenna Features:

  • Also, designed for high band VHF (Ch 7-13) band III (174-230 MHZ).
  • Typical single channel VSWR <1.1:1 on the channel.
  • Omni-directional or custom directional patterns.
  • Hot dipped galvanized steel construction.
  • Stainless Steel Dipoles.
  • Custom mounting brackets available for easy installation.
  • Single panel gain 7.5 dBd is at mid-band 8.0 dB Gain at the high end of band III.

Finally, for more information and pricing, please call the Jampro team. Alternatively, please leave a message via the Contact Us page. We will get back to you as soon as possible.

Download

JHD-HR2-Literature.pdf (16 downloads)
