High Power FM Antenna

JBCP

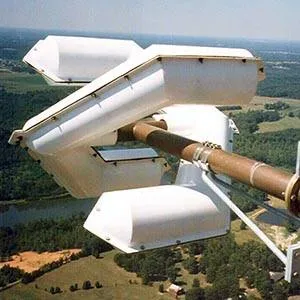

JBCP-H Optimizer High Power FM Antenna

The Jampro JBCP-H Optimizer High Power FM Antenna focuses on broadcast applications. These require insensitivity to icing conditions and the ability to handle high power. Manufacturing with high strength thick wall brass and copper with a 3-1/8″ outside diameter.

Furthermore, while able to handle 40KW, the JBCP-H is one of the highest power, side mount, FM antennas available. On a single frequency, it provides a VSWR is 1.1:1 at +/- 200 KHz or better.

The need for Radomes is rare because even with 1/2″ of radial ice, the typical VSWR remains less than 1.4:1. Factory tuning in terms of VSWR is standard. Optional field tuning may also improve the VSWR.

Moreover, this antenna adopts the same principles as the patented “PENETRATOR” antenna. This series of FM antennas has set the industry standard for FM side mount antennas. An optional 6-1/8″ Center Feed is available for higher power handling. Also, the shunt-fed design eliminates the need to “slug tune” the antenna in the field for optimum performance. Unlike similar, older methods, the Optimizer uses low impedance bays for unmatched stability and bandpass.

Features of Optimizer High Power FM Antenna

  • Outstanding VSWR without the need for field tuning.
  • DC grounded for lightning protection.
  • Excellent duplexing capabilities.
  • Circular or elliptical polarization.
  • High power handling.
  • Beam tilt and null fill is also available.
  • Custom directional patterns available.
  • FCC Directionalization is available.
