Side Mount FM Antenna

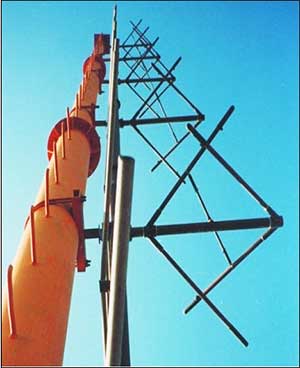

Side mount FM Antenna - Penetrator.

The Jampro JSCP side mount FM antenna (The Penetrator) has become the industry standard for quality and performance. While the power rating provides 10 – 40 kW maximum input, each bay consists of a Penetrator style radiating element. Each has a 3-1/8” shunt feed line. It also includes factory tuning to any frequency in the FM Band II (87.5 -108 MHz) range. The Jampro test range tower structure will simulate the client’s tower as closely as possible. Multiple frequency design is also available.

Furthermore, the true circular polarization of the JSCP antenna offers excellent performance for HD Radio, stereo, and SCA operations. Typical VSWR is 1.10:1 ± 200 kHz.

JSCP antennas use the highest quality marine brass and copper. Also, a hot-dipped galvanized steel mounting bracket for the utmost grounding supports for each bay. All orders will include standard round leg mounting brackets. Also, silver-plated inner conductor connectors will provide maximum contact life with minimum power loss.

JSCP antennas include DC grounding at every bay for maximum lightning protection.  Moreover, the rugged mechanical construction and mounting ensure a long product life with each JSCP antenna system’s outstanding performance.

Features of the Side Mount FM Antenna – The Penetrator

  • Radome Deicers.
  • FCC Directionalization.
  • Reduced RF Arrays.
  • Pattern Measurement Study.
  • Custom Mounting Brackets.
  • Electrical Beam Tilt.
  • Null Fill.
  • Multi Frequencies.

Finally, for more information, please call the Jampro team.  Alternatively, if outside of normal working hours or a national holiday, please leave a message via the Contact us page. We will respond to you as soon as possible.

Download

JSCP-Literature.pdf (678 downloads)
