UHF Mask Filter Combiner

UHF Mask Filter Combiner

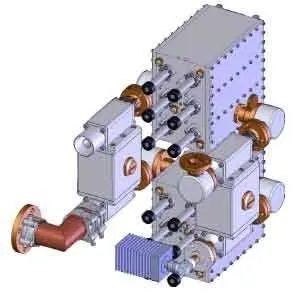

Jampro’s UHF Mask Filter Combiner Module delivers a constant impedance. It supports NTSC, PAL, DVB-T/T2, ISDBT, DTV. Moreover, outstanding performance is provided in the very compact design.

The RCCC2T11UM combiner module and filter also provide excellent results. These apply to the bandpass and channel combining application as well as mask filtering.

Each unit is also electrically and mechanically performance tested. This ensures strict adherence to Jampro’s superior level of quality.  Furthermore, the combiner designed focuses on applications where size concerns are at a premium.

UHF Mask Filter Combiner Features:

  • UHF 470860 MHz.
  • Up to 0.5kW average or 1kw pk sync per Channel.
  • Rugged High-Quality Design.
  • Constant Impedance (Balance Type).
  • Integrated DTV Mask Filtering.

Finally, for more information please call the Jampro team.  Alternatively, please leave a message via the Contact us page and we will respond to you as soon as possible.

 Download:

RCCC-2T1-1UM-Literature.pdf (12 downloads)
