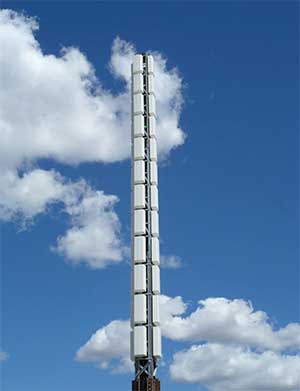

UHF TV Panel Antennas

The JUED Elliptical-Circular Polarized UHF TV Panel Antennas will be ideal for broadband applications. Moreover, dual/individual inputs for horizontal or vertical polarization allow for varying polarization split and pattern performance levels. Furthermore, the JUED and JUCD models design is ideal for digital/analog TV and mobile video.

Elliptical-Circular Polarized UHF Broadband Panel Antenna

UHF TV Panel Antennas features;

  • ATSC/3.0, DTV, ISDB-T, DVB-T/H, Analog, NTSC, PAL.
  • It also includes UHF bands IV & V.
  • Broadband multiple channel operation.
  • High power rating available.
  • Flexible panel placement also available for custom patterns.
  • Optional mounting spine for configuration of the top mount.
  • Durable and rugged stainless steel construction.

Also, corrosion-resistant stainless steel and aluminum with reflecting panels result in long-lasting durability even in the harshest of environmental conditions.

Moreover, the JUED & JUCD antenna is also based on a modular design. It is also fully configurable to provide various azimuth and elevation patterns. Also, optional beam tilt and null fill can alter the elevation pattern to maximize coverage. The Jampro test range is also available to optimize the radiation pattern. This will ensure that the product delivers the exact performance required.

UHF TV Panel Antennas specifications

  • JUED – Elliptical.
  • JUCD -Circular.
  • Frequency Range: Bands IV/V.
  • Impedance: 50 Ohm.
  • VSWR = 1.1:1.
  • Maximum Power 2.3 KW per Input (2).
  • Input Connector 2 x 7/8″.
  • Surface = 4.8 Sq. Ft.
